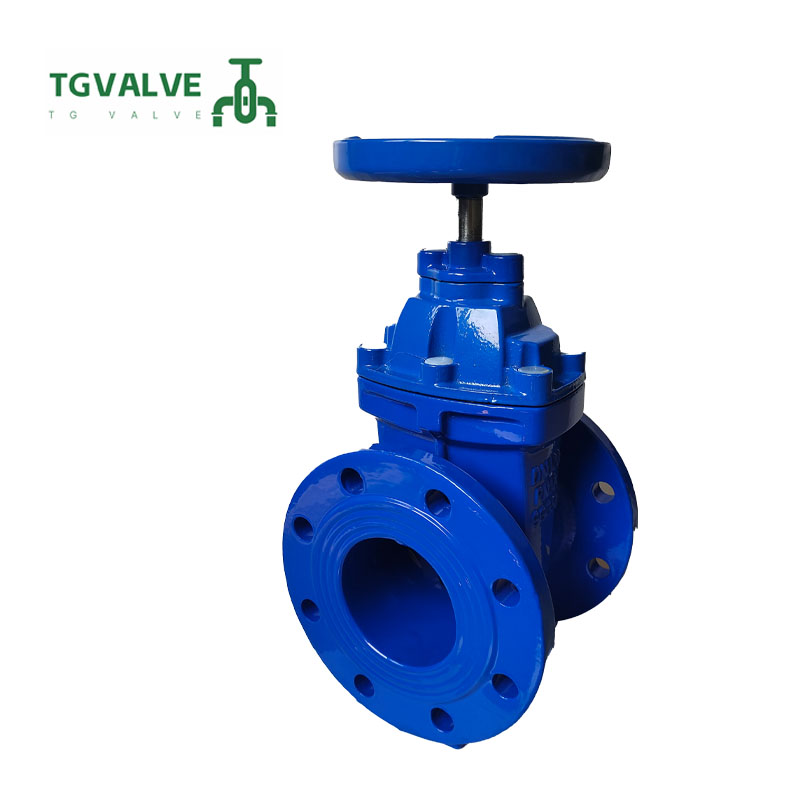

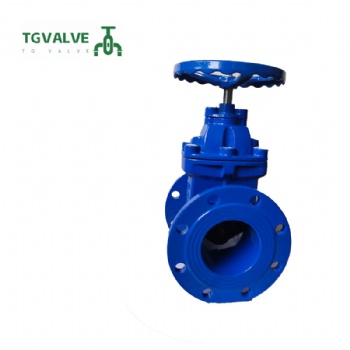

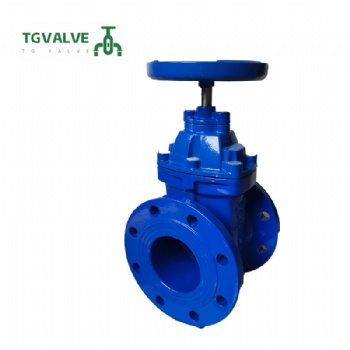

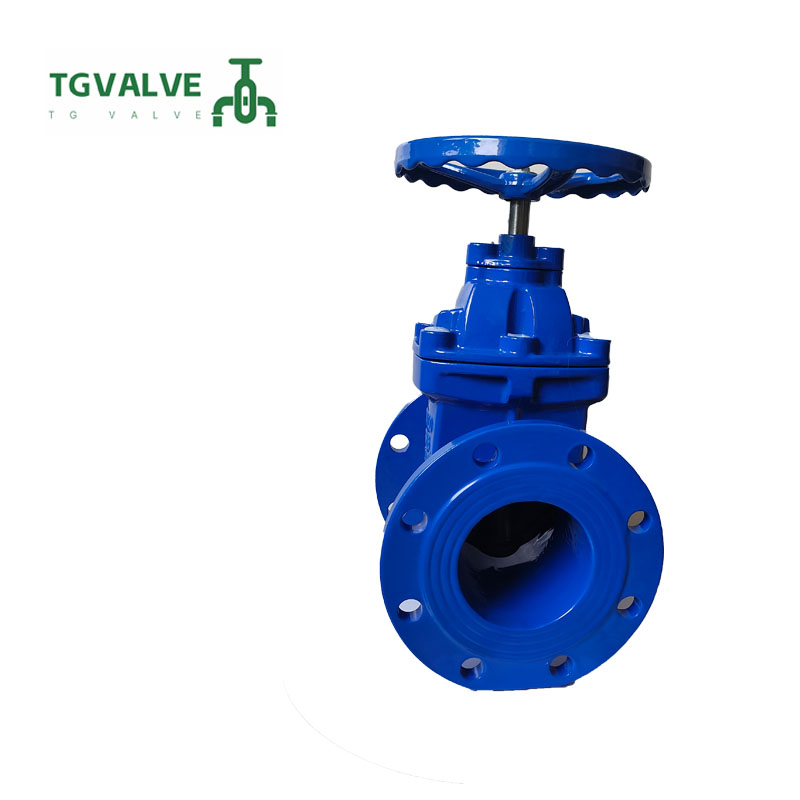

BS5163 standard double cover soft sealing gate valve

BS5163 standard double cover soft sealing gate valve


soft sealing gate valve achieves a good sealing effect by using the deformation compensation function generated by the integral rubber coating of the gate, which overcomes the phenomena of poor sealing, water leakage and rust of the general gate valve and saves the installation space more effectively. It can be widely used as a regulating and intercepting device in fluid pipelines such as tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electric power, ships, metallurgy and energy systems.

Product parameter

Product Name

BS5163 Resilient Seated Gate Valve

Model Number

DIN3352-F4 DN50 DN65 DN80 DN100 DN125 DN150  DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN700 DN800

Flange Drilling

EN1092-2

Thrust Nut

Nodular cast iron

Body

GGG50

Wedge

GGG50+EPDM

Stem Nut

Carbon steel

Seal Gasket

EPDM

Bonnet

GGG50

Handwheel

Nodular cast iron

Anti-Dust Ring

EPDM

Locking Nut

Nodular cast iron

Sealing Ring

EPDM

O-Ring

EPDM

Working Pressure

PN10 \ PN16

Weight

33KG
