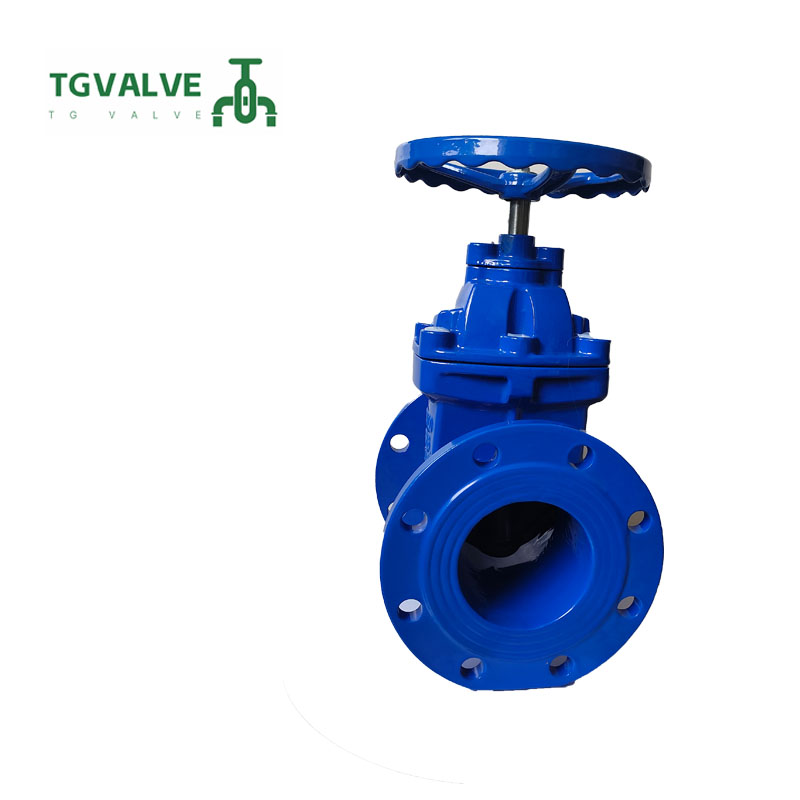

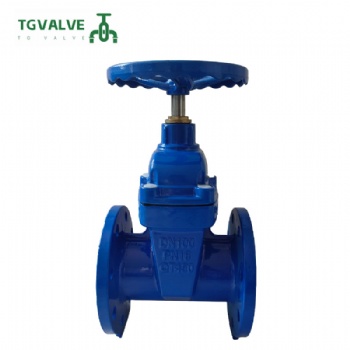

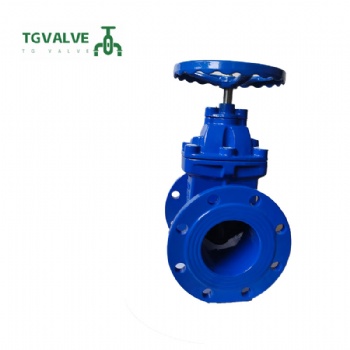

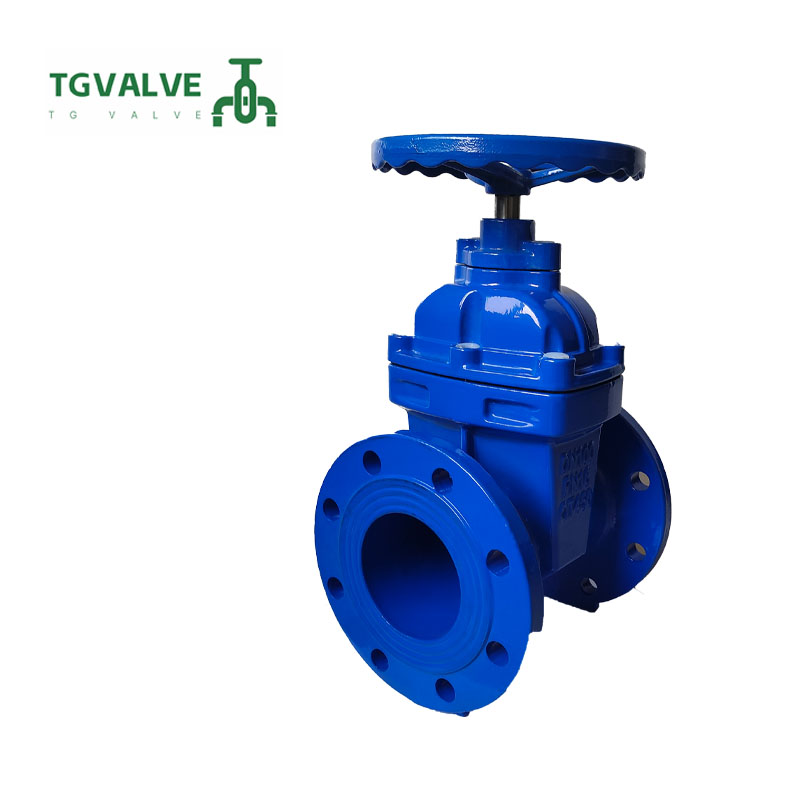

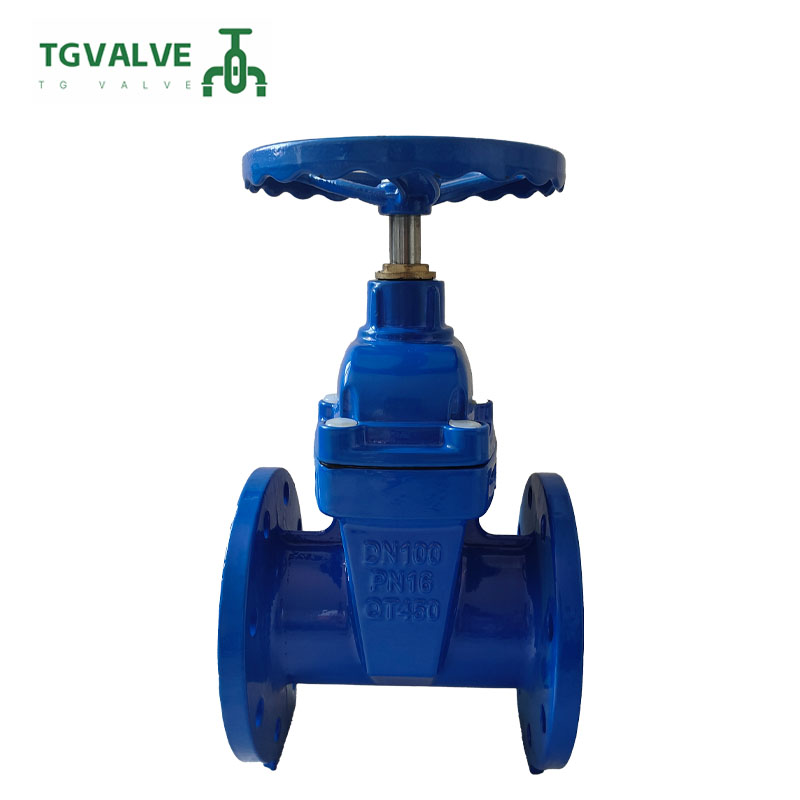

Non-rising resilient seat soft sealing gate vale

Non-rising resilient seat soft sealing gate vale

---

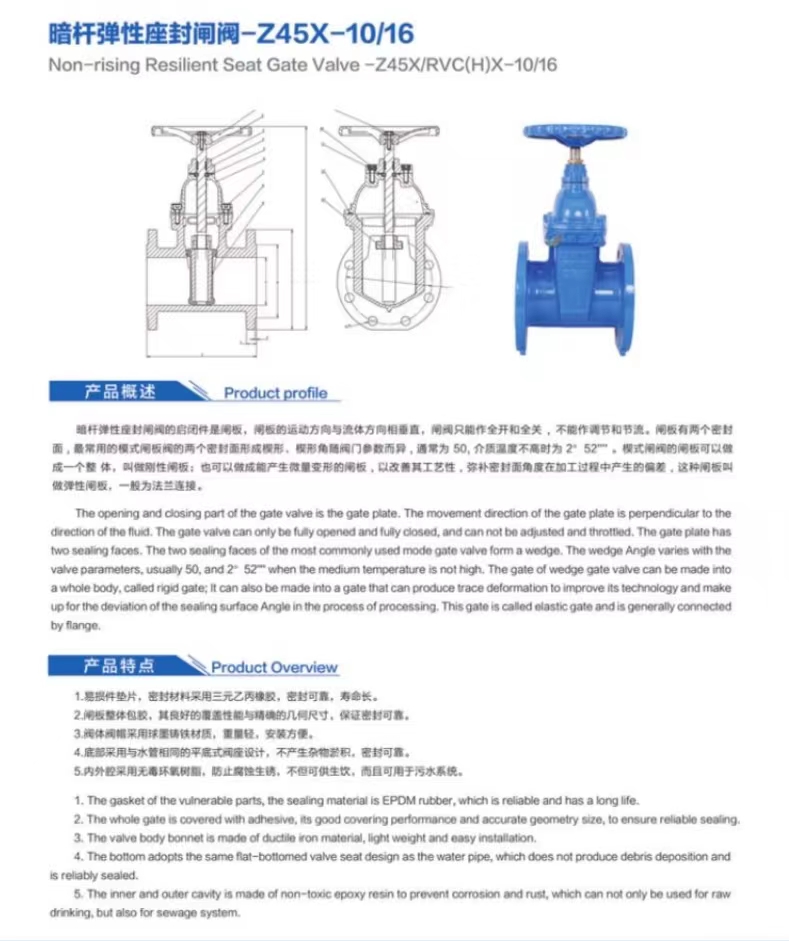

The opening and closing part of the gate valve is the gate plate. The movement direction of the gate plate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and can not be adjusted and throttled. The gate plate has two sealing faces. The two sealing faces of the most commonly used mode gate valve form a wedge. The wedge Angle varies with the valve parameters, usually 50, and 2"52 when the medium temperature is nothigh. The gate of wedge gate valve can be made into a whole body, called rigid gate; it can also be made into a gate that can produce trace deformation to improve its technology and make up for the deviation of the sealing surface Angle in the process of processing. This gate is called elastic gate and is generally connected by flange.
